aluminum alloy rotary pneumatic actuator autocontrol valves rack and pinion type

Product Categories

Pneumatic Rack And Pinion Actuator [84]
Pneumatic Rotary Actuator [84]
Double Acting Pneumatic Actuator [55]
Single Acting Pneumatic Actuator [48]
Pneumatic Butterfly Valves [46]
Pneumatic Ball Valves [38]
Aluminum Alloy Quarter-turn Pneumatic Actuator [34]
AT Series Pneumatic Actuator [33]
GT Series Pneumatic Actuator [20]
Pneumatic Valve Accessories [27]
180° Three Position Pneumatic Actuator [23]
Stainless Steel Pneumatic Actuator [11]

Wuxi XM Auto-Control Valves Industry Co.,Ltd

Contact Now

aluminum alloy rotary pneumatic actuator autocontrol valves rack and pinion type

Brand Name : xm

Model Number : DA,SR

Certification : CE,ATEX,ISO,SGS

Place of Origin : Jiangsu, China

MOQ : 20

Supply Ability : 5000 sets per month

Delivery Time : 3-15days

Packaging Details : 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport

Metarial : extruded Aluminum alloy

Colour : black, gray, blue, or as customers' requirement

Application : Ball valve, butterfly valve

Connection : ISO 5211,DIN 3337

Structure : rack and pinion

Type : double action and single action

Product name : aluminum alloy rotary pneumatic actuator autocontrol valves rack and pinion type

Size : 32 to 400

Contact Now

aluminum alloy rotary pneumatic actuator autocontrol valves rack and pinion type

Specifications
1. CE and ISO certificate
2. Strictly quality control
3. Good quality at a favorable price
4. Excellent After-service
5. Fast delivery time

Our advantage:

1. We are the factory.

2. We will test your order products every by one before packing.

3. We have the technical to offer OEM service

Material	Extruded Aluminum alloy
Rotary Angle	0~90 degree
Structure	rack and pinion rotary actuator
Working Pressure	2~8bar
Surface Treatment	hard anodizing
Working Temperature	Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection	NAMUR, ISO5211 and DIN3337
Application	ball valve, butterfly valve, and rotary machine
Cup Color	grey, black, sky blue, dark blue, red, orange

Product Description

pneumatic rotary actuator
AT series DA(double acting) and SR(Spring Return) Pneumatic Actuators are mainly for Pneumatic Butterfly Valve and Pneumatic Ball Valve.

XM series pneumatic actuators statement of usage and selection

Through research development and design XM series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.
Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.
The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.
Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.
All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise
The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.
Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.
Multi function indicator with NAMUR is convenient for mounting accessories.
Pre-compressed load spring is convenient for safe mounting and tear down procedures.
Die-casting aluminum pistons and end caps have high intensity and light weight.
Different O-rings materials are available for high and low temperature.
Solenoid valves are easily mounted without any connecting plank.
Product Application

XM AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.

Application
Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.

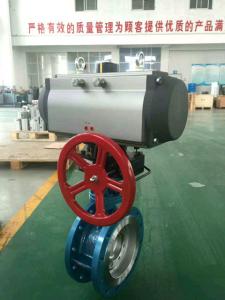

aluminum alloy rotary pneumatic actuator autocontrol valves rack and pinion type Images
